NEWMEEN Series Experimental Desktop Vacuum Freeze Dryer
Desktop Vacuum Freeze Dryer
Experimental Desktop Vacuum Freeze Dryer
Experimental vacuum freeze dryer product features:

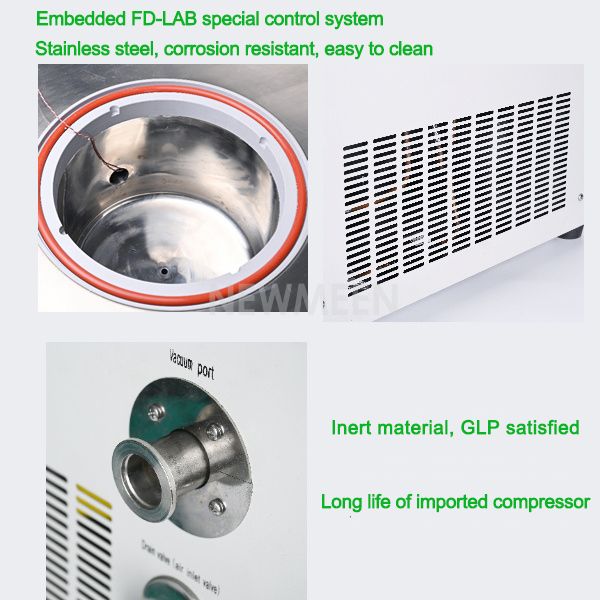

Integrated structure design, small size, no external flange, easy to use, no leakage.
All materials in contact with the product use inert materials that meet the requirements of the GLP.
The cryotrap and operating table are made of stainless steel for corrosion prevention and easy to clean.
All stainless steel inflatable (water) valve are designed and produced by our company to secure its safety, corrosion and no leakage.

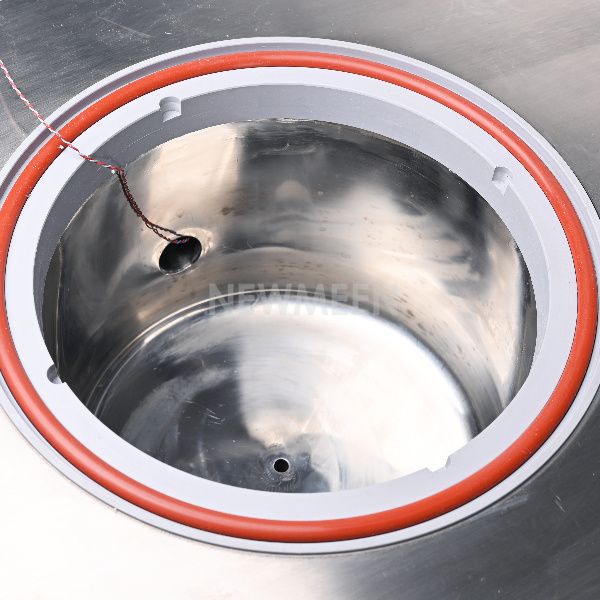

The cryotrap has a large opening, no inner coil tube, with sample prefreezing function, and no need for low-temperature refrigerator.
Professional gas diversion technology, so that to catch ice uniformLy and forcely.
International famous brand compressor of high efficiency and energy saving, long service life, low noise.
Well-known brand vacuum pump with high pumping speed to achieve a higher limit vacuum degree.
Industrial grade embedded FD-LAB special control system with high reliability and stability.
Intelligent data recording system which can query the history curve and record, and can realize the data recording U disk export.
11.The
touch screen displays and records the cryotrap temperature curve,
sample temperature curve and vacuum degree curve, besides, the data
export can be browsed and printed by computer.

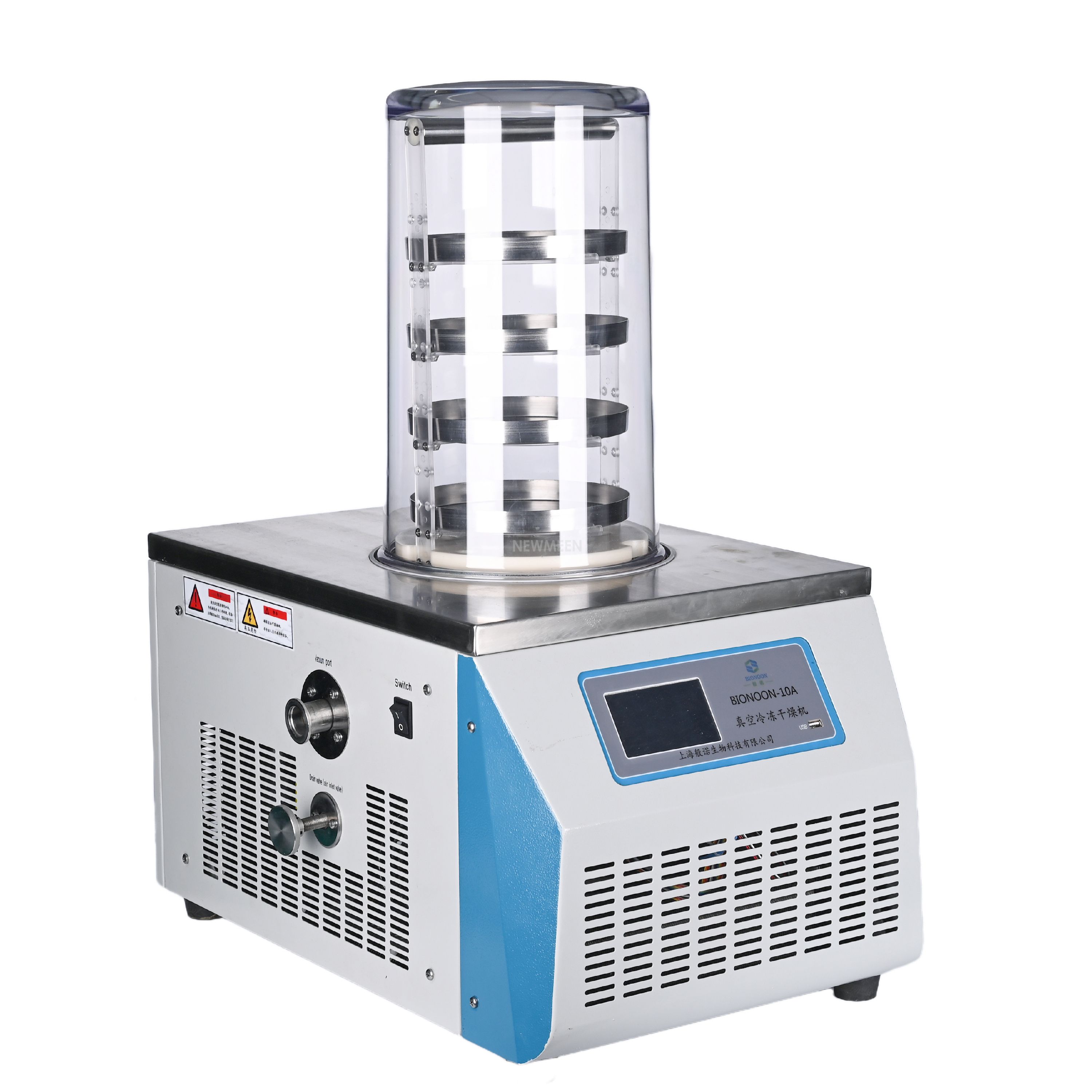

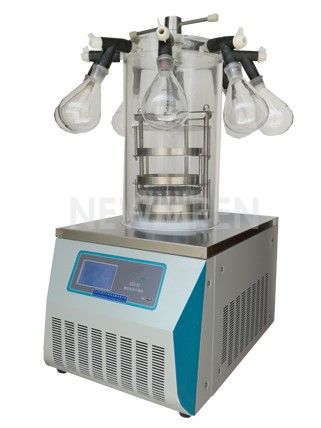

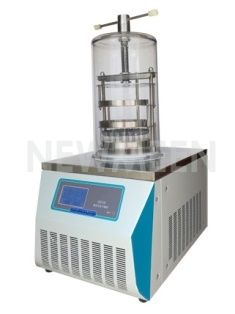

NEWMEEN-2PT NEWMEEN-2YG NEWMEEN-2DQ NEWMEEN-2YD
Technical parameters:
MODEL | NEWMEEN-2PT | NEWMEEN-2YG | NEWMEEN-2DQ | NEWMEEN-2YD |
Specification | Normal | Gland | Multi-manifold | Multi-manifold Gland |
Freeze-dried area | 0.12㎡ | 0.08㎡ | 0.12㎡ | 0.08㎡ |
Cold trap temperature | ≤-56℃ (no load), optional ≤-80℃ (no load) | ≤-56℃ (no load), optional ≤-80℃ (no load) | ≤-56℃ (no load), optional ≤-80℃ (no load) | ≤-56℃ (no load), optional ≤-80℃ (no load) |
Limit vacuum | ≤5pa (no load) | ≤5pa (no load) | ≤5pa (no load) | ≤5pa (no load) |
Water capture capacity | 3-4kg/24h | 3-4kg/24h | 3-4kg/24h | 3-4kg/24h |
Material plate size | Ф200 mm | Ф180mm | Ф200mm | Ф180mm |
Quantity of material plates | 4 PCS | 3 PCS | 4 PCS | 3 PCS |
Tray loading material | 1.2 L (material thickness 10mm) | 0.8L (material thickness 10mm) | 1.2 L (material thickness 10mm) | 0.8L (material thickness 10mm) |
Main frame dimensions （W × D × H) | 615×450×370mm | 615×450×370mm | 615×450×370mm | 615×450×370mm |
Drying chamber size | Ф260×430mm | Ф260×430mm | Ф260×465mm | Ф260×465mm |
Cooling method | air cooling | air cooling | air cooling | air cooling |
penicillin bottleФ12mm | 920 PCS | 560 PCS | 920 PCS | 560 PCS |
penicillin bottleФ16mm | 480 PCS | 285 PCS | 480 PCS | 285 PCS |
penicillin bottleФ22mm | 260 PCS | 165 PCS | 260 PCS | 165 PCS |
MODEL | NEWMEEN-4PT | NEWMEEN-4YG | NEWMEEN-4DQ | NEWMEEN-4YD |
Specification | Normal | Gland | Multi-manifold | Multi-manifold Gland |
Freeze-dried area | 0.12㎡ | 0.08㎡ | 0.12㎡ | 0.08㎡ |
Cold trap temperature | ≤-56℃ (no load), optional ≤-80℃ (no load) | ≤-56℃ (no load), optional ≤-80℃ (no load) | ≤-56℃ (no load), optional ≤-80℃ (no load) | ≤-56℃ (no load), optional ≤-80℃ (no load) |
Limit vacuum | ≤5pa (no load) | ≤5pa (no load) | ≤5pa (no load) | ≤5pa (no load) |
Water capture capacity | 3-4kg/24h | 3-4kg/24h | 3-4kg/24h | 3-4kg/24h |
Material plate size | Ф200 mm | Ф180mm | Ф200mm | Ф180mm |
Quantity of material plates | 4 PCS | 3 PCS | 4 PCS | 3 PCS |
Tray loading material | 1.2 L (material thickness 10mm) | 0.8L (material thickness 10mm) | 1.2 L (material thickness 10mm) | 0.8L (material thickness 10mm) |
Main frame dimensions（W × D × H) | 580×500×720mm | 580×500×720mm | 580×500×720mm | 580×500×720mm |
Drying chamber size | Ф260×430mm | Ф260×430mm | Ф260×465mm | Ф260×465mm |
Cooling method | air cooling | air cooling | air cooling | air cooling |
penicillin bottleФ12mm | 920 PCS | 560 PCS | 920 PCS | 560 PCS |
penicillin bottleФ16mm | 480 PCS | 285 PCS | 480 PCS | 285 PCS |
penicillin bottleФ22mm | 260 PCS | 165 PCS | 260 PCS | 165 PCS |
MODEL | NEWMEEN-8PT | NEWMEEN-8YG | NEWMEEN-8DQ | NEWMEEN-8YD |
Specification | Normal | Gland | Multi-manifold | Multi-manifold Gland |
Freeze-dried area | 0.18㎡/0.27㎡ | 0.12㎡ | 0.18㎡/0.27㎡ | 0.18㎡ |
Cold trap temperature | ≤-56℃ (no load), optional ≤-80℃ (no load) | ≤-56℃ (no load), optional ≤-80℃ (no load) | ≤-56℃ (no load), optional ≤-80℃ (no load) | ≤-56℃ (no load), optional ≤-80℃ (no load) |
Limit vacuum | ≤5pa (no load) | ≤5pa (no load) | ≤5pa (no load) | ≤5pa (no load) |
Water capture capacity | 6kg/24h | 6kg/24h | 6kg/24h | 6kg/24h |
Material plate size | Ф240 mm | Ф200 mm | Ф240 mm | Ф200mm |
Quantity of material plates | 4 PCS / 6 PCS | 3 PCS | 4 PCS / 6 PCS | 3 PCS |
Tray loading material | 1.8 L / 2.7L (material thickness 10mm) | 0.9L (material thickness 10mm) | 1.8 L / 2.7L (material thickness 10mm) | 0.9L (material thickness 10mm) |
Main frame dimensions（W × D × H) | 630×580×970mm | 630×580×970mm | 630×580×970mm | 630×580×970mm |
Drying chamber size | Ф300×445mm | Ф300×445mm | Ф300×445mm | Ф300×445mm |
Cooling method | air cooling | air cooling | air cooling | air cooling |
penicillin bottleФ12mm | 1320 PCS / 1980 PCS | 990 PCS | 1320 PCS / 1980 PCS | 990 PCS |
penicillin bottleФ16mm | 740 PCS / 1110 PCS | 555 PCS | 740 PCS / 1110 PCS | 555 PCS |
penicillin bottleФ22mm | 360 PCS / 540 PCS | 270 PCS | 360 PCS / 540 PCS | 270 PCS |
